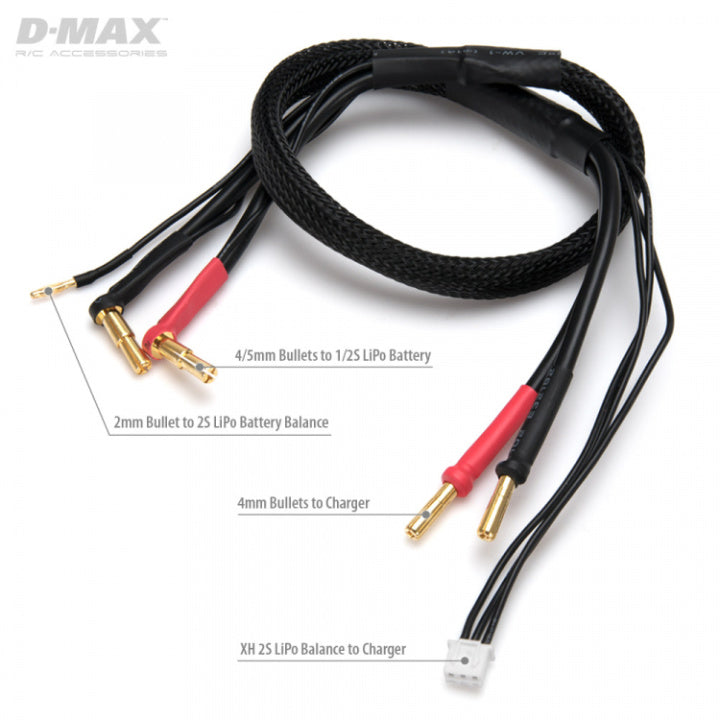

The D-Max charging cable B9683 ensures safe and efficient charging of 2S car LiPo batteries in a hardcase. It is specifically designed for connecting batteries with 4mm or 5mm female connectors to chargers with 4mm bullet connectors. The integrated XH balancer connection guarantees a precise charging process and optimal care for your battery cells.

Key Features

• Universal Battery Connectivity: The stepped 4/5mm gold bullet connectors allow connection to a wide range of 1S and 2S hardcase LiPo batteries.
• Integrated Balancer Connection: Equipped with an XH balancer plug and a separate 2mm gold bullet connector for direct connection to the battery cell.
• Standardized Charging Port: The 4mm gold bullet connectors on the charger side are compatible with most common RC chargers.
• Secure Power Transfer: The use of flexible 12AWG silicone cables ensures low resistance and high current carrying capacity for efficient charging.
• Convenient Length: With an overall length of 500 mm, the cable provides ample reach between the charger and battery on your workbench.

Technical Specifications

• Manufacturer: D-MAX
• Item Number: B9683
• Battery Connector: 4mm / 5mm Gold Bullet Connector (stepped)
• Balancer Connector: XH Plug and 2mm Gold Bullet Connector
• Charger Connector: 4mm Gold Bullet Connector
• Cable Gauge: 12AWG
• Length: approx. 500 mm

Scope of Delivery

• 1x D-Max Charging Cable 4/5mm 2S LiPo to 4mm Bullet, 12AWG, 500mm

Application

This charging cable is aimed at RC modelers who use 1S or 2S hardcase LiPo batteries with 4mm or 5mm female connectors. It is designed for use with standard chargers that feature 4mm outputs and an XH balancer port.
