The D-MAX HXT 4mm Connector is a specialized component designed to create secure high-current connections in RC electronics. Developed for demanding use in remote-controlled models where reliable power supply is crucial for function and safety, this connector offers a stable connection. It is a practical choice for model builders seeking a polarity-protected solution for coupling drive batteries and electronic speed controllers (ESCs).

Key Features

• Efficient Power Transmission: The 4mm gold-plated male and female contacts ensure very low contact resistance. This allows for maximum power output and minimizes energy loss as well as heat generation at the connection point.
• Integrated Polarity Protection: The characteristic, asymmetrical design of the housing physically prevents connection with incorrect polarity. This feature protects your electronics, especially LiPo batteries and speed controllers, from damage.
• Enhanced Safety: The housing completely encloses the current-carrying contacts, making them touch-proof. This effectively prevents accidental short circuits caused by contact with metallic tools or other conductive objects.
• Designed for High Currents: The system is engineered to handle the high continuous and peak currents that occur in modern RC drivetrains with brushless motors and Lithium Polymer (LiPo) batteries.
• Easy Handling: The ergonomic design of the housing provides a good grip, making it easier to connect and disconnect the plug, even in field conditions.
• System Compatibility: As part of the HXT connector system, this connector is compatible with all suitable HXT 4mm counterparts or appropriate adapters, for example, for XT60 systems, to increase flexibility in model building.

Technical Specifications

• Connector System: HXT
• Contact Diameter: 4.0 mm
• Manufacturer: D-MAX
• Manufacturer Part Name: DynoMAX
• Item Number: B9574

Scope of Delivery

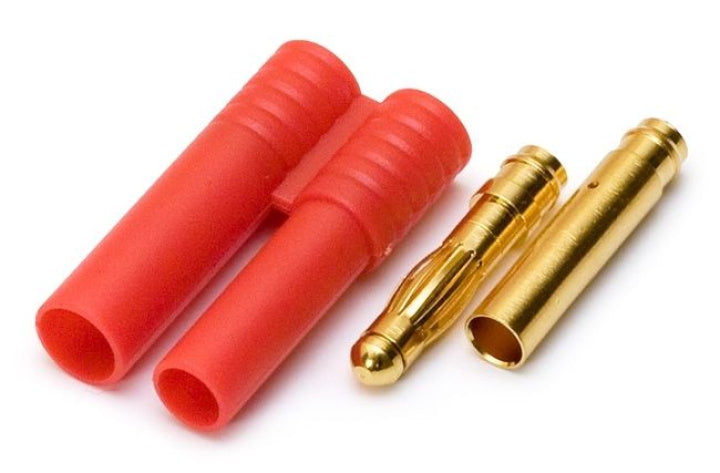

• 1x D-MAX HXT 4mm Connector (Set consisting of male and female housing and the corresponding contacts)

Application

This connector is aimed at model builders and RC enthusiasts who assemble, repair, or adapt their drive components to a uniform connector system. It is typically used for soldering to the cables of LiPo batteries and electronic speed controllers (ESCs) in high-performance RC flight models such as EDF jets or large motorized gliders.
