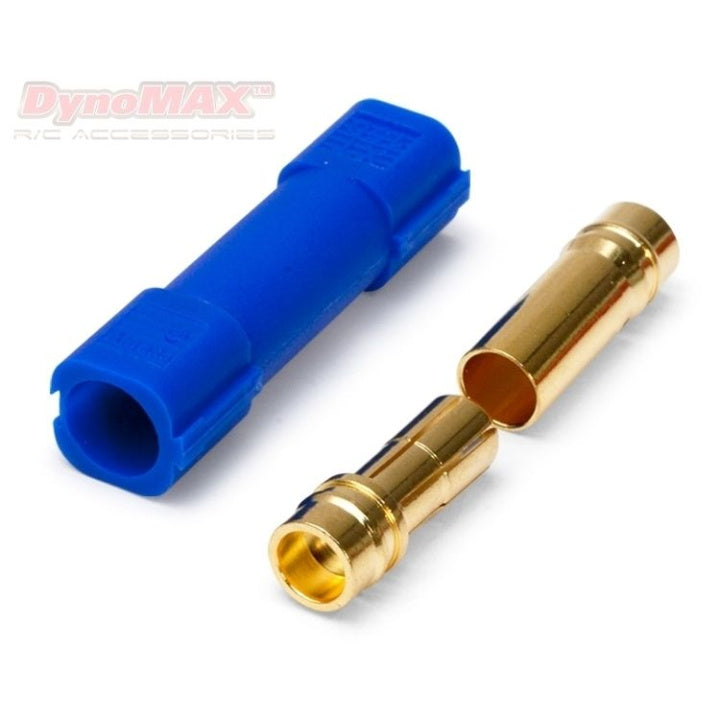

The D-Max Connector XT150 is a robust 6mm plug connector system specifically designed for high-current applications in RC modeling and electronics. It provides a secure, polarity-protected, and low-loss connection for demanding projects where high currents need to be reliably transmitted. The distinctive blue color coding allows for clear organization of different circuits or polarities, preventing mix-ups.

Key Features

• High Current Capacity: Engineered for continuous currents of up to 100A and short-term peak loads of up to 120A, ideal for powerful drives and batteries.
• Gold-Plated Contacts: The 6mm round pin contacts are gold-plated, ensuring minimal contact resistance and effective protection against corrosion.
• Short-Circuit and Reverse Polarity Protection: The plastic housings fully enclose the contacts, preventing accidental short circuits. The design of the housings ensures a polarity-protected plug connection.
• Modular Design: Individual housings can be connected to form a fixed male-female unit, or used separately, depending on wiring requirements.
• Secure Solder Connection: Wires are routed through the housing and then soldered to the contacts before being pressed into the housing. This creates a mechanically stable and strain-relieved connection.

Technical Specifications

• Manufacturer: D-MAX
• Connector System: XT150
• Contact Diameter: 6 mm
• Contact Material: Gold-plated
• Maximum Current Rating (Continuous): 100 A
• Maximum Current Rating (Peak): 120 A
• Maximum Wire Diameter: 5 mm
• Dimensions (Housing): approx. 40.3 x 9.6 x 10.8 mm
• Weight (per pair): approx. 8 g
• Color: Blue

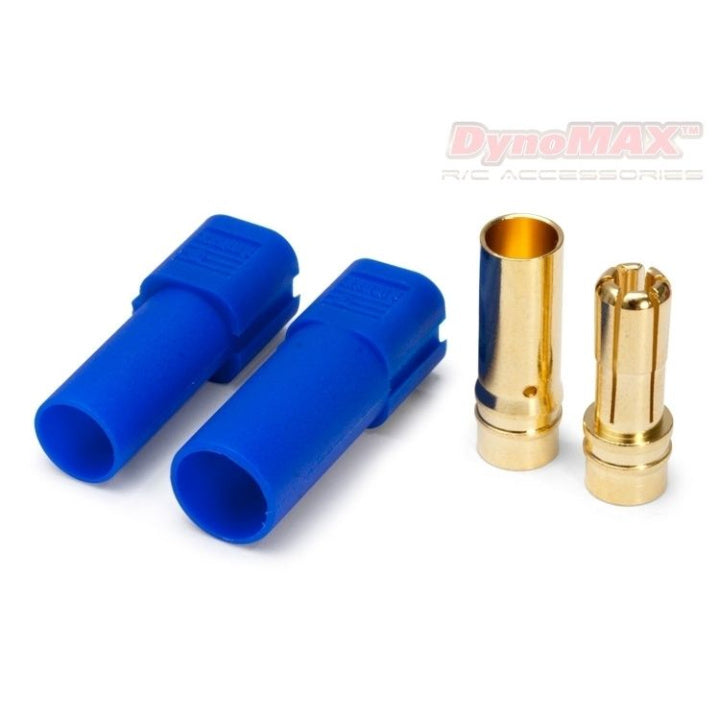

Scope of Delivery

• 1x XT150 Male Housing (Blue)
• 1x XT150 Female Housing (Blue)
• 1x 6 mm Gold Contact Pin (male)
• 1x 6 mm Gold Contact Socket (female)

Application

Installation of these connectors requires basic soldering skills. They are perfectly suited for connecting high-power batteries, ESCs (Electronic Speed Controllers), and motors in large RC models, drones, or other electronic devices with high current demands.
