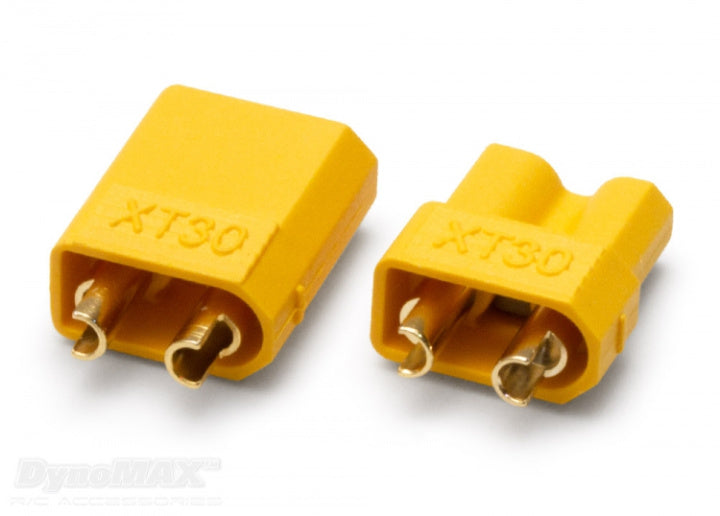

The D-Max Connector XT30 is a plug connection engineered for reliable power and signal transmission in demanding RC applications. It's designed for model builders and electronics enthusiasts who require a secure and resilient connection for components like batteries, speed controllers, and motors, especially in the realm of drones and smaller aircraft models. These connectors provide a stable solution to ensure signal integrity and mechanical reliability within electronic systems.

Key Features

• Engineered for High Currents: Provides a stable electrical connection to ensure consistent power delivery, even during challenging maneuvers.
• Low Contact Resistance: The design of the gold-plated contacts minimizes electrical resistance at the connection point, boosting efficiency and reducing heat generation.
• Secure Mechanical Connection: The male and female connectors firmly interlock, preventing accidental disconnection due to vibrations or mechanical stress during operation.
• Reverse Polarity Protection: The asymmetrical housing design eliminates the possibility of incorrect polarity, thereby safeguarding your connected electronics from damage.
• Compact and Lightweight Design: Its minimal weight and small dimensions make this connector ideal for weight-critical applications such as FPV drones and compact RC aircraft.
• Optimized Solder Tabs: The crescent-shaped solder cups are designed for easy and durable soldering with wires, offering a large contact surface.

Technical Specifications

• Connector Type: XT30
• Manufacturer: D-MAX
• Contact Pin Diameter: 2 mm
• Housing Material: Heat-resistant Nylon
• Recommended Max Cable Gauge: 16 AWG
• Item Number: B9333B

Scope of Delivery

• 50 x XT30 Male Connectors
• 50 x XT30 Female Connectors

Application

These connectors are suitable for building and repairing RC models, particularly for wiring LiPo batteries, Electronic Speed Controllers (ESCs), and motors in drones or other compact devices. Installation requires basic soldering skills to establish a secure and conductive connection with the respective cables.
