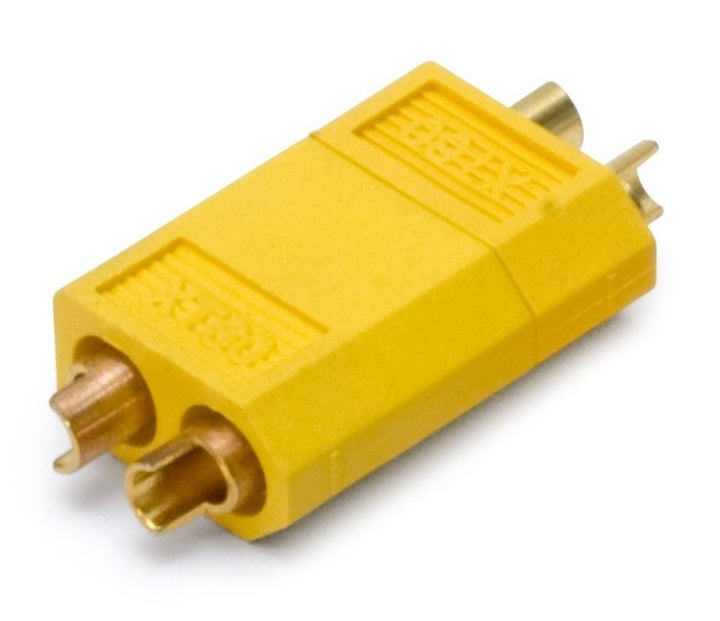

The D-Max Connector XT60 Pair offers a reliable and high-current plug connection for demanding RC model applications. Designed for use in remote-controlled vehicles, aircraft, and boats, these connectors ensure a secure and low-loss power transfer between the battery, ESC, and motor. Their robust construction guarantees durability and a consistently stable electrical connection, even under high loads.

Key Features

• Gold-plated 3.5 mm brass bullet connectors for minimal contact resistance and lossless power transmission.
• Heat-resistant housing made of flame-retardant polyamide (Nylon), ensuring dimensional stability and safety within a temperature range of -20 °C to 200 °C.
• Designed for a high continuous current load capacity of up to 60 Amps, ideal for powerful drive systems in RC models.
• The asymmetric housing design provides a mechanically reverse-polarity protected connection, reliably preventing short circuits due to incorrect mating.
• Semi-open solder cups allow for easy and secure soldering with cables up to a cross-section of 12 AWG (approx. 3.3 mm²).
• Very low internal resistance of just 0.55 mΩ, which reduces heat generation and maximizes the efficiency of the entire drivetrain.

Technical Specifications

• Manufacturer: D-MAX
• Connector System: XT60
• Contact Diameter: 3.5 mm
• Contact Material: Brass, gold-plated
• Housing Material: Polyamide (PA66, Nylon)
• Continuous Current Rating: 60 A
• Rated Voltage: 500 V DC
• Internal Resistance: 0.55 mΩ
• Maximum Cable Cross-section: 12 AWG
• Operating Temperature: -20 °C to +200 °C

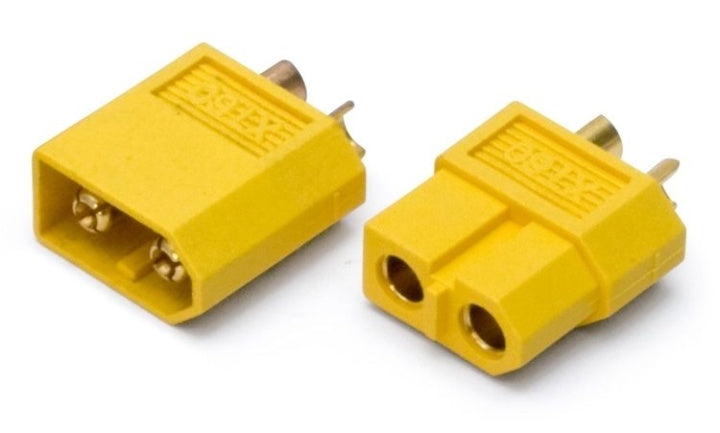

Scope of Delivery

• 1x XT60 Plug (male)
• 1x XT60 Socket (female)

Application

These connectors are ideally suited for use in various RC models such as cars, boats, aircraft, and drones, where a stable and resilient connection between the battery, electronic speed controller (ESC), or charger is required. Assembly requires basic soldering skills for attaching the cables to the contacts' solder cups.
