The ELCERAM Nitride G2 is the second generation of the innovative high-performance controller from the Czech Republic – designed for maximum precision, superior temperature control and state-of-the-art telemetry.

With its aluminum nitride ceramic heat sink , an integrated TFT color display and advanced protection and analysis functions, the Nitride G2 sets a completely new standard in 1:10 ESC technology.

Ideal for Stock, Open Stock, Modified, Onroad & Offroad – and compatible with sensor-controlled brushless motors from 4.5T .

Highlights

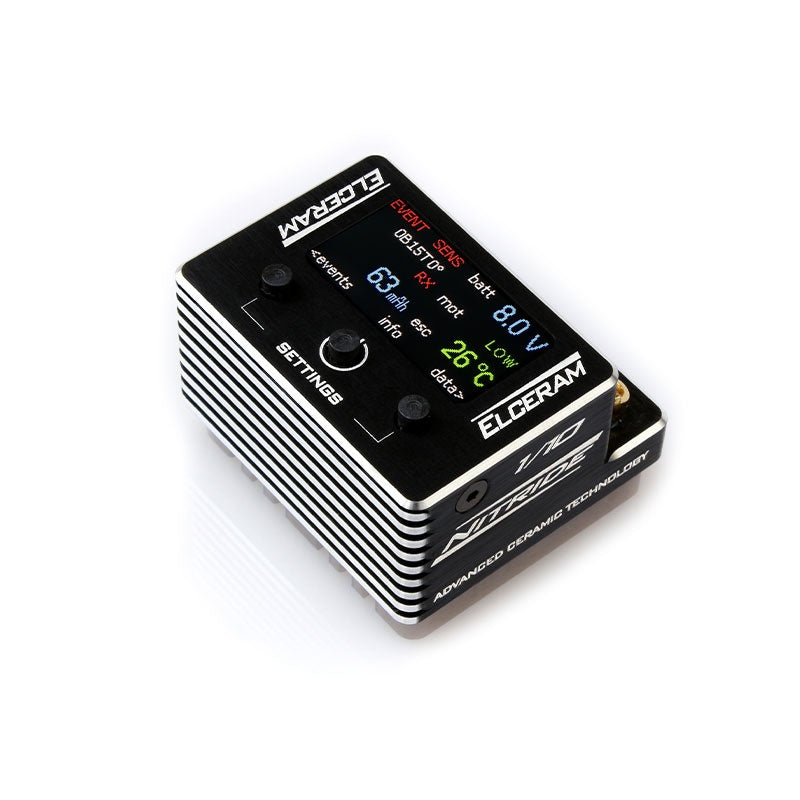

📟 Integrated TFT color display – No programmer required

• Matte 160×80 TFT display directly on the controller
• All settings without PC, card or app
• 3-button navigation: fast, intuitive, race-ready
• Live data and fault diagnosis at a glance

❄ Revolutionary aluminum nitride cooling technology

• Extremely high thermal conductivity
• MOSFETs are cooled directly without additional thermal layers.
• Lowest internal resistance thanks to extra-thick silver and copper layers
• Additional aluminum cooling fins & connection for smart fan

⚡ Real-time monitoring & intelligent protection systems

• Live monitoring: voltage, current, ESC temperature, motor temperature
• Unique: Real-time monitoring of battery current and battery load
• Error detection at:
  • Engine problems
  • Sensor errors
  • Mechanical blockage
  • Battery or BEC problems
• Pre-race check: Check everything before you go out on the track.

📊 Race Data Logging

• Temperature curves
• Current and voltage waveforms
• Event History
• Data remains stored even after switching off the power.

🔧 Comprehensive tuning options

• Gas and brake curves
• Boost & Turbo Timing
• Hall-Angle settings
• Zero Timing / Blinky Mode
• Adjustable maintenance reminder
• Super simple Rx calibration system

Technical data

• Area of ​​use: 1/10 On-road & Off-road (Stock, Open Stock, Modified)
• Motor type: Brushless Sensored (from 4.5T)
• Waterproof: No
• Polarity protection: Yes
• Continuous/peak current: 180A / 1500A
• Input voltage: 2S LiPo
• BEC: 6.0-7.4V adjustable, 6A/12A peak
• Dimensions: 34 × 36.5 × 24 mm
• Weight: 59 g (without cable)
• Cable: 180 mm BEC (grey line = negative)
• Mounting: Aluminum adhesive plate included
• External capacitors: Required (included)

Scope of delivery

• ELCERAM Nitride G2 ESC
• Aluminum mounting plate
• External Power Capacitors
• Instructions
