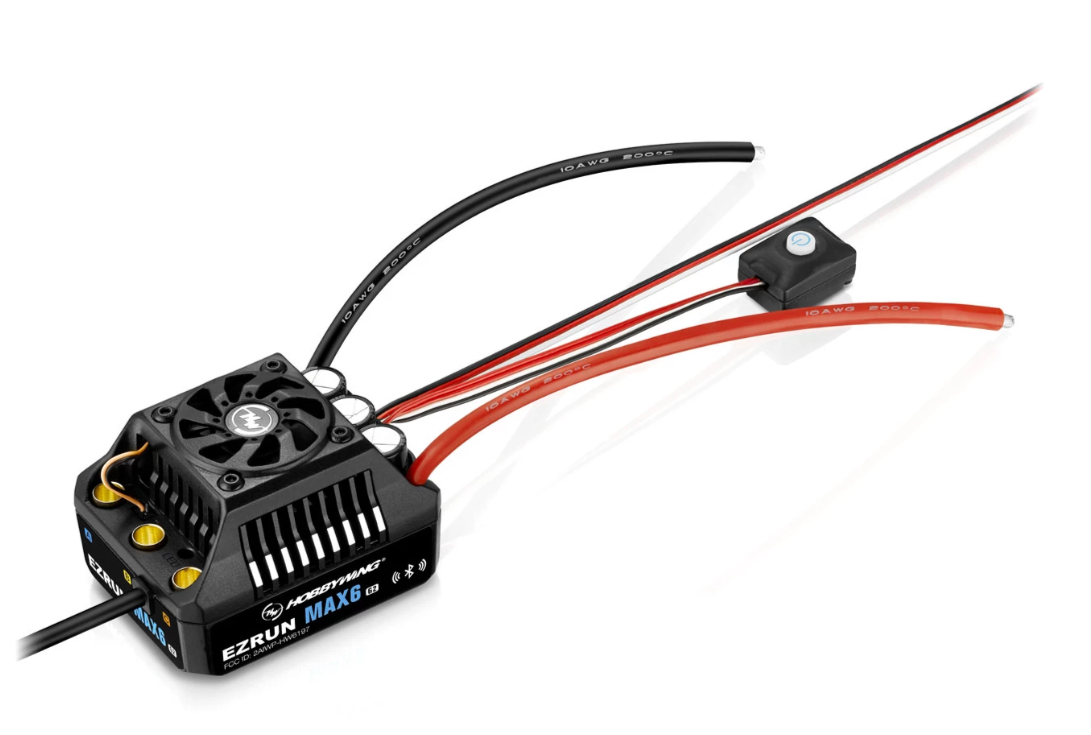

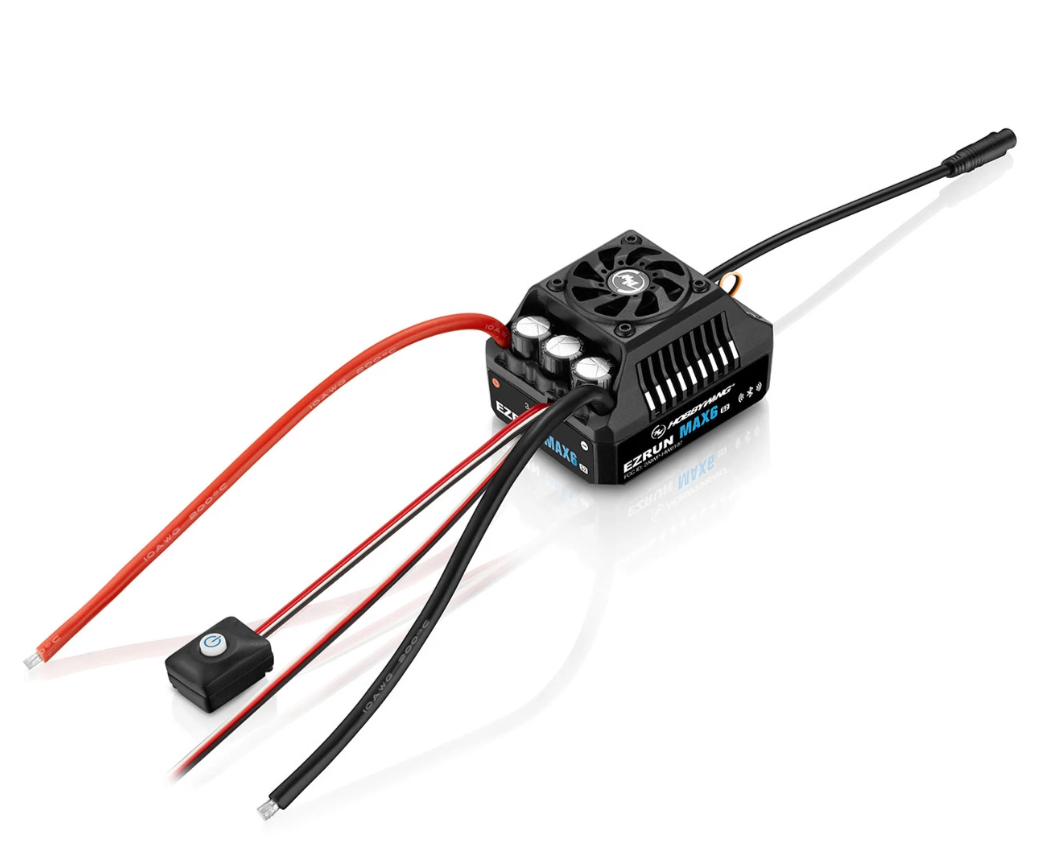

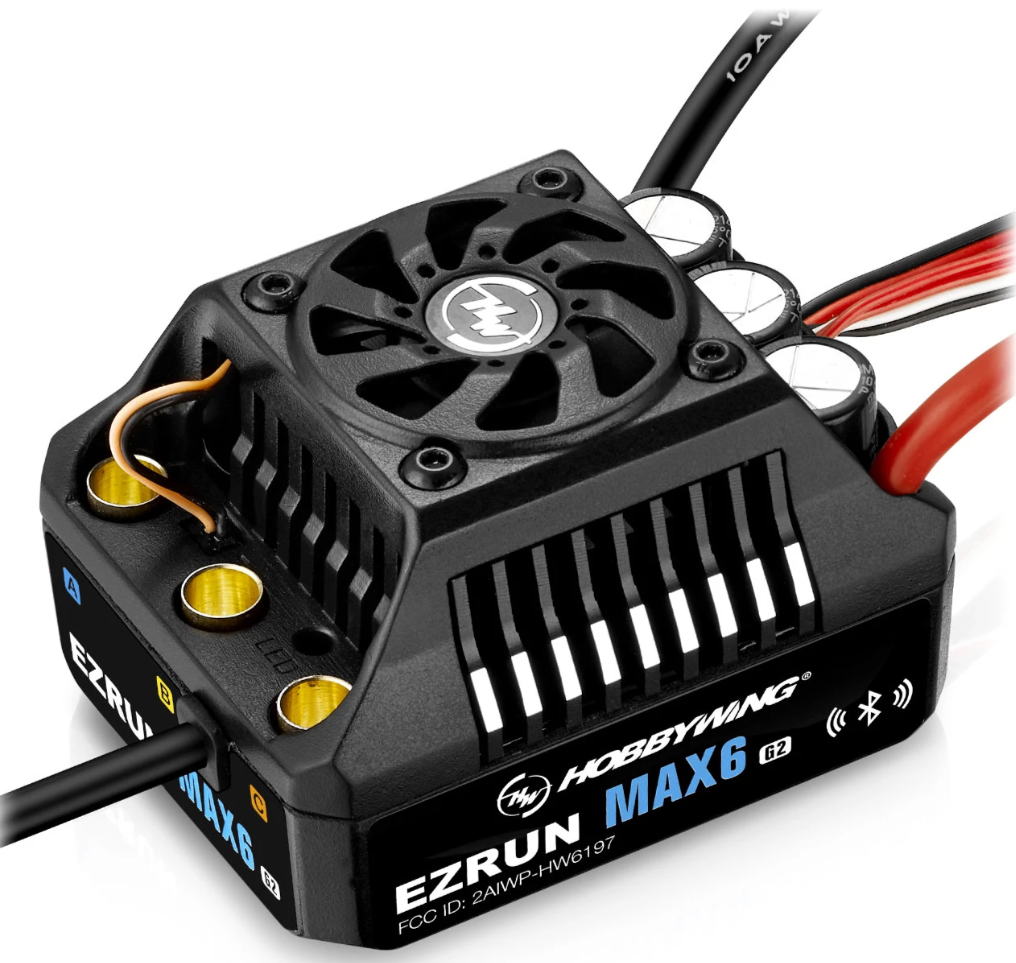

The Hobbywing EZRUN MAX6 (160A) is an extremely robust high-voltage brushless speed controller for powerful 1/6 and 1/7 scale models as well as heavy 1/8 scale vehicles. With 160A continuous current and up to 1050A peak current, it delivers uncompromising performance – even with aggressive driving styles and hardcore applications.

Maximum reliability & performance

Thanks to high-quality components and state-of-the-art firmware, the MAX6 offers:

✔ Brutal acceleration
✔ Stable power output
✔ Wheelies & high-speed runs
✔ Clean gas/brake control
✔ Sensitive parameter settings

At the same time, the controller reliably protects itself against overload or operating errors.

Made for all weather conditions

The MAX6 is excellently sealed against water and dust .
Whether rain, snow, dust, gravel or puddles – this regulator can handle it all.

Integrated anti-spark system

The internal anti-spark circuit prevents sparking when connecting 5S-8S LiPo batteries.
✔ Battery protection
✔ Protection for plugs
✔ Protection for your fingers

Advanced electronic switch

✔ Lifespan over 50,000 switching cycles
✔ Waterproof & dustproof
✔ Shockproof
✔ No unintentional shutdown during hard landings

Powerful integrated BEC

The MAX6 features a powerful switch-mode BEC :

• Adjustable: 6V / 7.4V
• High current carrying capacity (peak up to 25A)
• Ideal for HV servos

Perfect for large, heavy models with a powerful steering servo.

Firmware updates possible

With the Hobbywing USB Link software , the multifunction LCD Program Box or PC/laptop, you can update the controller with the latest firmware at any time.

Maintenance-friendly design

The controller is virtually maintenance-free.
Only the fan can be easily replaced if needed – without opening the case.

Technical data

• Continuous current: 160A
• Peak current: 1050A
• Input voltage: 3–8S LiPo
• Motor: Sensorless Brushless
• BEC: 6V / 7.4V (Switch Mode, High Current)
• Motor connections: 6.5mm gold contact
• Intended use: 1/7 & 1/6 Touring Car, Buggy, Truggy, Monster Truck
• Suitable for: High-end & aggressive setups

Ideally suited for

• 1/7 on-road (e.g. high-speed models)
• 1/6 Street & Truck
• Heavy 1/8 scale models
• Bashing & High-Speed ​​Applications
