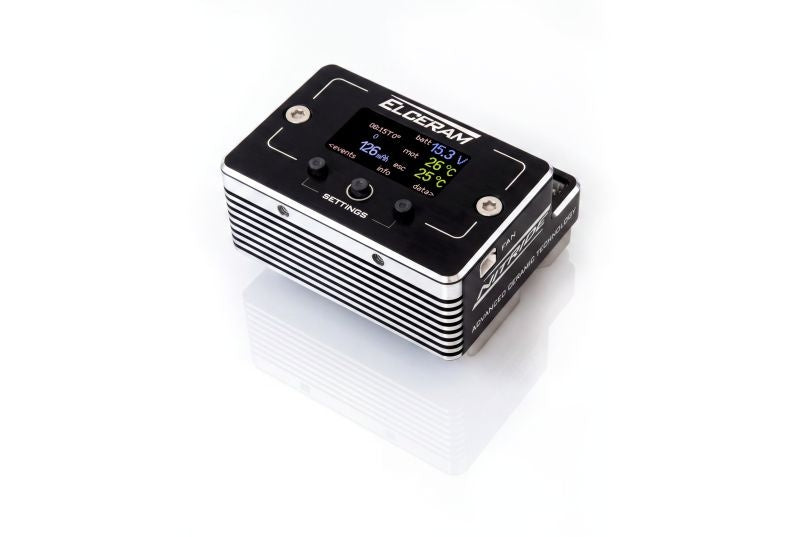

The Elceram NITRIDE 1/8 G1 Competition OFFROAD ESC is a cutting-edge electronic speed controller designed for sensor-based brushless motors in 1/8 scale. Developed specifically for competitive off-road racing, its integrated display allows for full programming and data analysis directly on the device, eliminating the need for an external programming card or app. Its advanced cooling technology, based on aluminum nitride ceramic, ensures reliable performance even under demanding conditions.

Key Features

• Integrated TFT Color Display: A matte 160 x 80-pixel LCD screen enables direct adjustment of all parameters and real-time display of race data, making external programming devices obsolete.
• Efficient Cooling Technology: A specially designed heat sink made from aluminum nitride ceramic offers superior thermal conductivity. Additional aluminum cooling fins and a pre-configured port for a 25mm fan further optimize cooling performance.
• Real-time Monitoring and Data Logging: The ESC monitors and displays real-time data such as battery current, discharge, as well as ESC and motor temperatures. Race data, temperature curves, and histograms are saved even after power-off.
• Comprehensive Protection Features: Built-in reverse polarity protection and intelligent algorithms safeguard the ESC from damage caused by motor failures or mechanical issues.
• Direct On-Device Programming: Three buttons allow for quick and precise adjustment of all relevant parameters, including throttle response, braking behavior, boost and turbo timing, and Hall angle.
• System Diagnostics and Maintenance Aid: Before a race, critical system data such as motor temperature, sensor cable status, and BEC voltage can be checked. An adjustable maintenance reminder also assists with regular upkeep.

Technical Specifications

• Application: 1/8 On-road and Off-road, Brushless, Sensored
• Continuous Current / Peak Current: 220 A / 1500 A
• Input Voltage: 2S – 4S LiPo
• Motor Compatibility: Up to 2800 kV
• BEC Output Voltage (adjustable): 6.0 V – 8.4 V
• BEC Continuous Current / Peak Current: 6 A / 15 A
• Fan Output (adjustable): 6.0 V – 8.4 V at max. 3 A continuous current
• Dimensions (W x L x H): 43 x 50 x 28 mm
• Weight: 112 g (without cables)
• Reverse Polarity Protection: Yes
• Waterproof: No

Scope of Delivery

• NITRIDE 1/8 ESC
• AWG10 Connection Cables
• 2x External Capacitors
• ELCERAM 25 mm Fan
• Double-sided adhesive tape
• ELCERAM Sticker Set

Application

This ESC is designed for competitive racers and enthusiastic RC pilots who demand a system with precise adjustability, reliable performance, and detailed data analysis for their 1/8 scale models. The intuitive on-device operation enables quick setup changes right at the track.
